Modxo Lite for OGxbox! (PREORDER)

Introducing the new Modxo lite!

Unlike the Modxo 2040 adapters, These are ready to go customized boards based on the YD2040 devboards. Flash it with the latest PrometheOS for YD-Rp2040 uf2 and install.

Features include

• 16mb flash memory (store 16 different bios' instead of the standard 4)

• Input and output for HDD and LAN activity via LEDs.
• I2C LCD support
• RGB led output for future addons
• UART, Xbox I2c and expansion I2C connectors.
• Onboard usbC and Boot button for easy programming / reprogramming.

All boards will be tested but shipped blank, you will need to program it yourself by plugging in a usb c cable and dragging over the appropriate UF2.

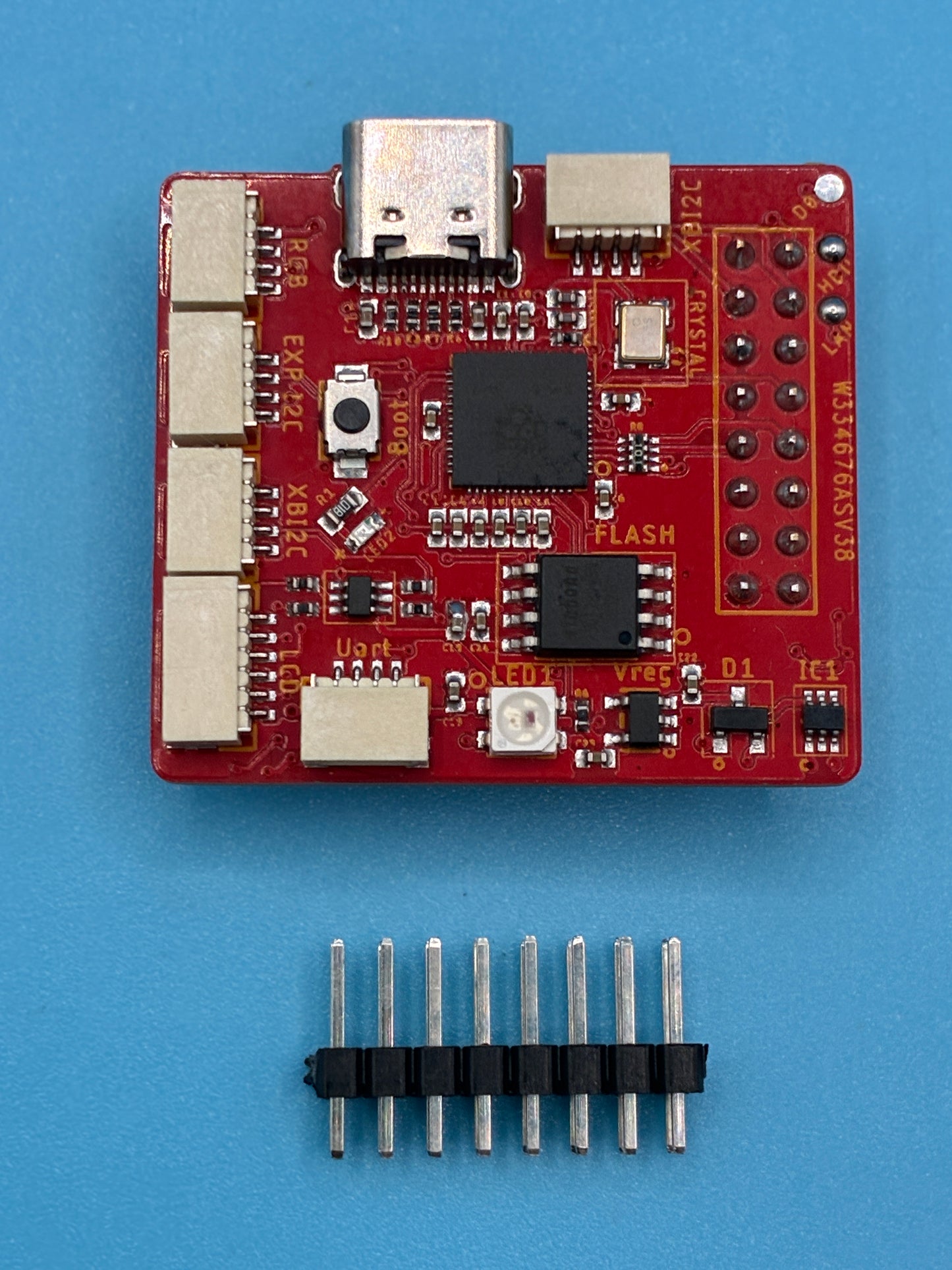

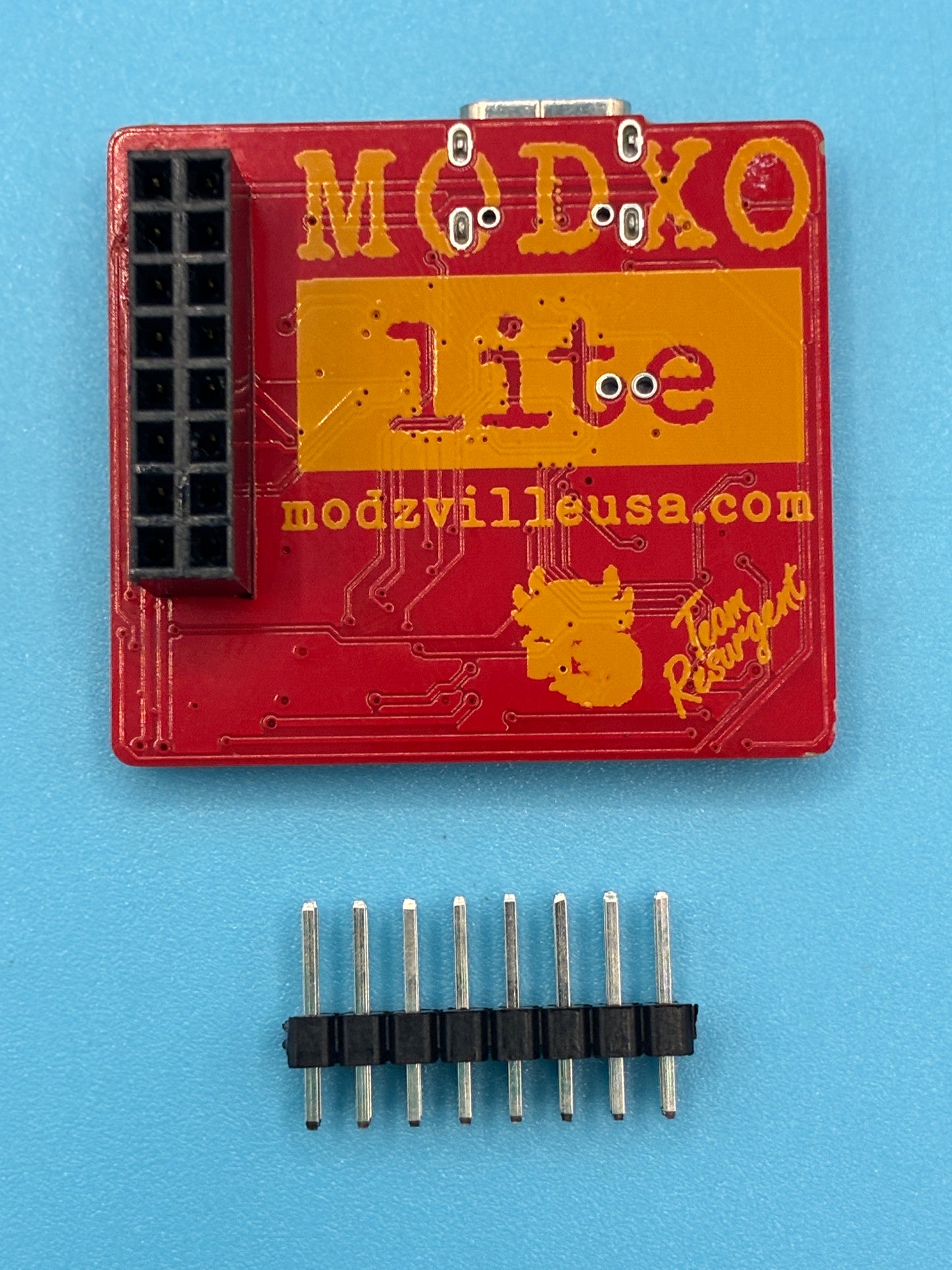

THIS IS A PREORDER! The boards pictured are the prototypes. The actual product will be a black pcb, with ENIG and White silk screen. I'll be adding 1 more connector and a few other minor tweaks before placing the order.

UPDATE - ladies  and gentlemen, I'm still chipping away at assembly with the modxo lites.
Unfortunately jlc used 2 capacitors instead of resistors on each board that i need to manually replace.
I'll be fufilling the preorders in the order that they were received.
I will get all of these orders filled asap, this little factory goof up added a ton of manual labor and I'm just one dude.
Nonetheless, I'ma keep on the grind. If you preordered one expect to see it shipped very soon!
