Xbox - Xblast Lite

Xblast Lite features

• Xblast Recovery Os
• 2x Bios banks (1x 512kb bank and 1x 256kb bank)
• Hdd locking / Unlocking
• Eeprom backup / recovery
• LCD Support
• Tsop recovery / Ability to Tsop flash a console without the need to softmod first
• Software Tsop Splitting for 1.0 and 1.1 xboxes

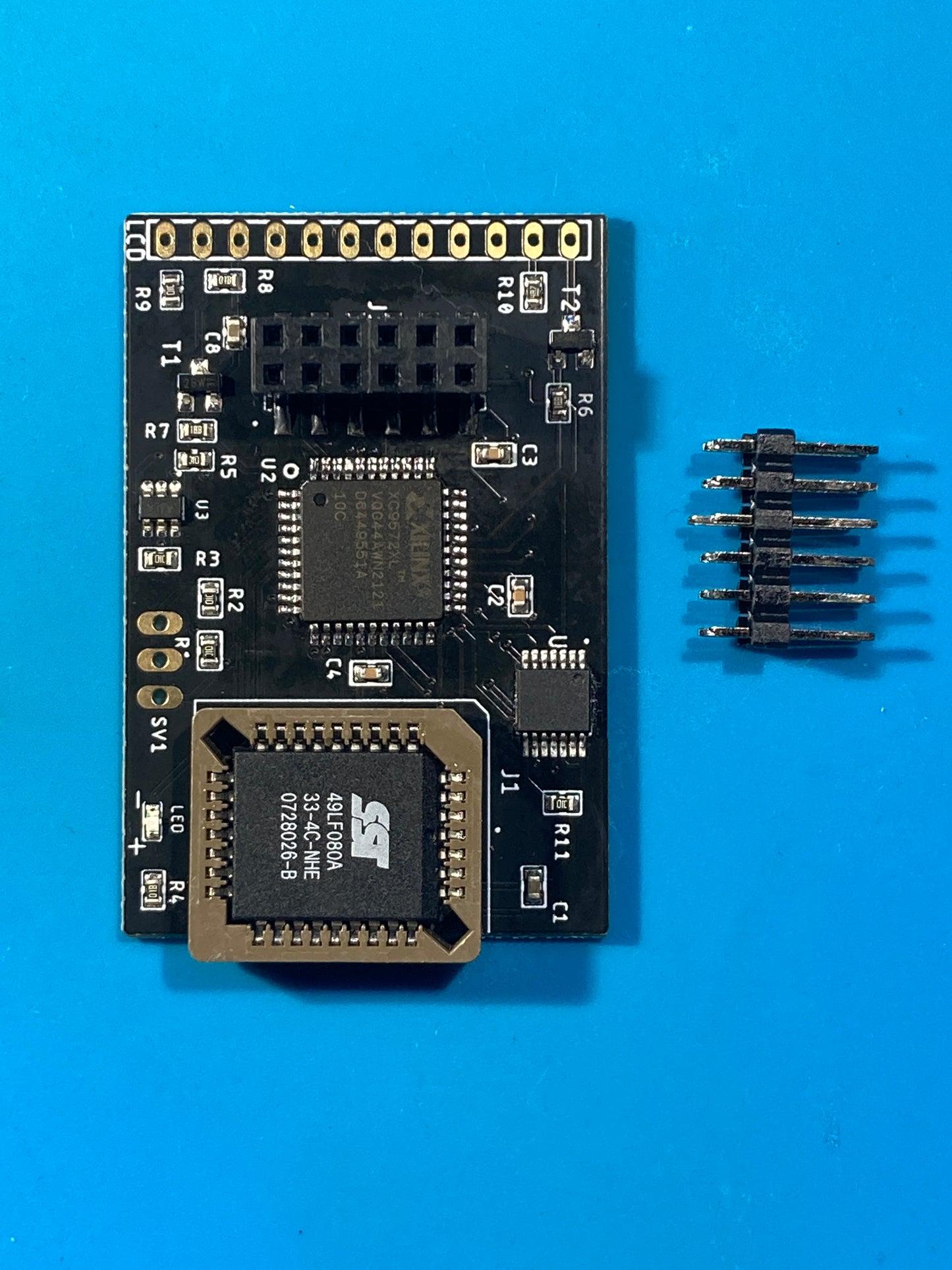

The Xblast Lite is an open source modchip created by psyko_chewbacca. These have been my go to modchip for whenever I want to do an xbox build with an LCD faceplate. They're also a fantastic chip to have on hand if you do a lot of TSOP flashing as you can skip the softmodding entirely as well as recover if you end up with a botched TSOP flash. Since there aren't many people making these chips these days, Helder and I collaborated on making our own boards. Check out his shop here!

https://heldergametech.com/

SILKSCREEN ISSUE!

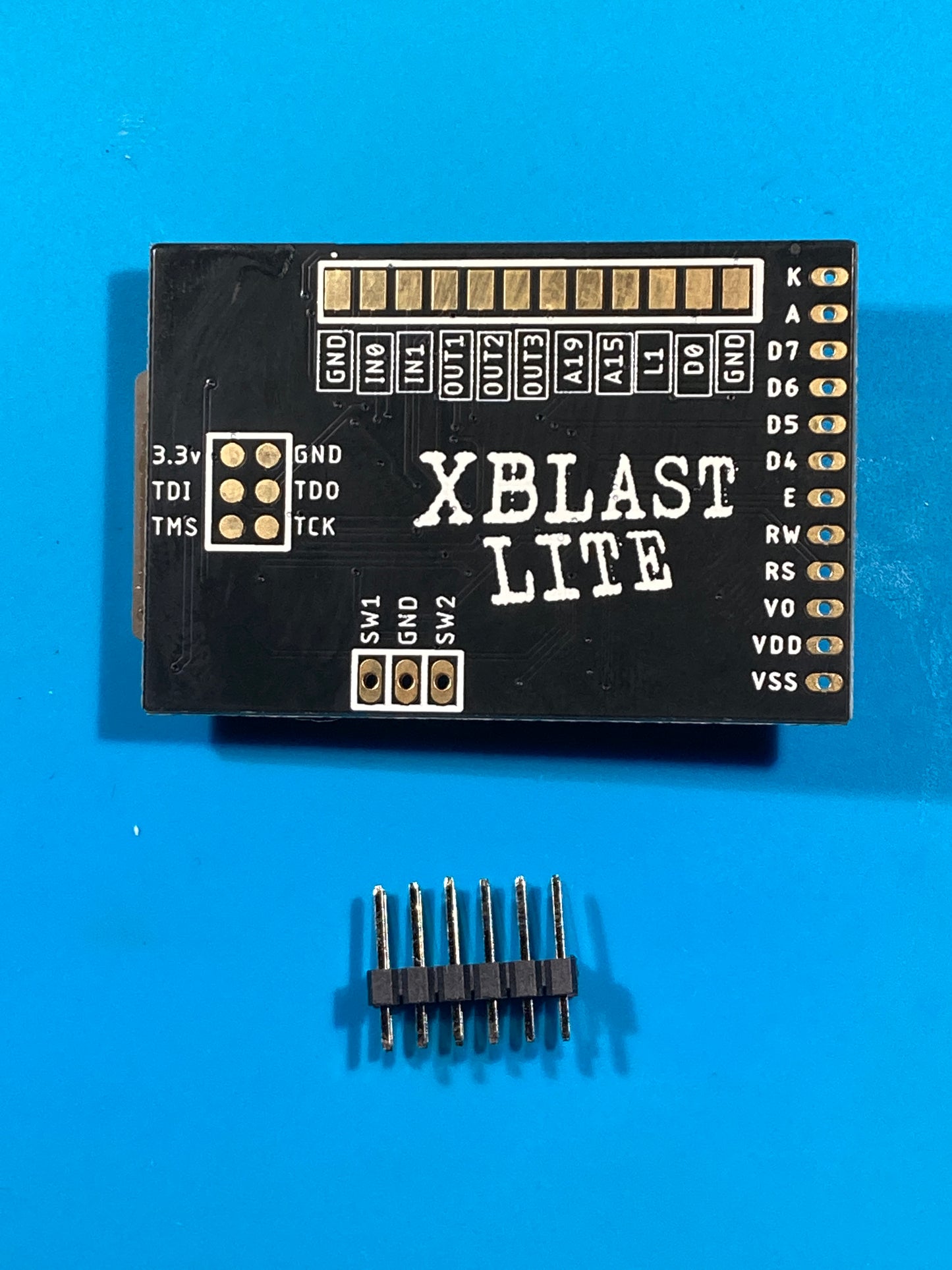

The first revision of these boards is missing Out0 on the silkscreen. This will be resolved in the later batches of the boards. In the meantime here's a reference for those who want to utilize the IN / OUT pads.

For installation and usage, check out the original xblast lite manual here.

https://bitbucket.org/psyko_chewbacca/lpcmod_os/wiki/browse/

DIY LCD faceplate kits for the Xblast lite are available here!

International folks!

I do not ship internationally currently, I recommend getting one from CM_AU out of Australia here.

Videos

Installation for 1.0 - 1.6 + Tsop Flashing / Splitting / Recovery

DIY LCD Faceplate

1.0 - 1.1 Top side pinout. The traces are fragile, I recommend tacking the wires to the board with some uv resin.
